Pyramidal D30AU thickness 4cm fireproof

Dimension:
Width 500 mm
Length 500 mm
Thickness 40 mm (h.base 2+2)

Color: black

Packaging: boxes 1000X500X800mm px 52

NB: Dimensional tolerances thickness +/- 10%

Reaction to fire: UL 94 HF1 - fireproof

Application: coll spray Multispray

Pyramidal D30AU thickness 4 cm

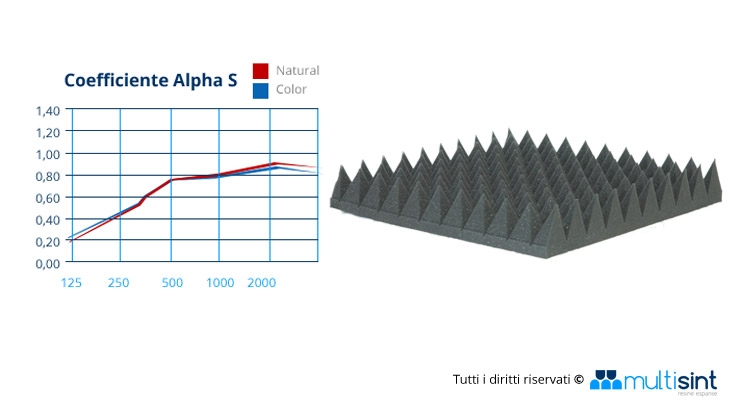

The PYRAMID 30 which has a thickness of 40 mm. Presents the minimum thickness used to obtain an appreciable acoustic absorption. Thicknesses less than would be no effective. Given its absorption coefficients of the PYRAMID 30 is usually installed on at least l '80% of the area to be treated. The PYRAMID 40mm, is used in environments music, industrial environments, civil, business. In the music field, is particularly suited for dubbing rooms or environments such as HiFi showroom stores, theater, engine compartments or compressors. The success of all our products, is due to the advanced design of the research and development sector.

Material
Polyurethane foam, flexible open cell density 30 Kg / mc, anthracite, flame retardant, resistant to temperature - 50° C to + 110° C. Excellent for absorbing sound insulation, also offers good thermal insulation, thus saving energy. The product can be colored with a spray paint with acrylic enamels non-flammable.

Reaction to fire
1IM (self-extinguishing material, not dripping) identification of the rules of ref. UNI 9175 compliant with FMVSS302

Fields of application
The Pyramid is widely used in gyms, conference rooms, auditorium, shooting ranges, recording music, audio-visual control rooms, mobile acoustic panels, engine room blowers

Implementation
The Pyramidal, thanks to its flexibility, it can be cut and shaped very easily and can be applied on any surface, even curve, provided smooth, free of fats, oils or powders, by means of glue or silicone glue.

Storage
Store in a cool, dry, protected from weather, moisture, frost and direct exposure to sunlight.

Information
The information and data provided are given in good faith and believed to be correct. However, no responsibility is assumed for such information and data, nor can it be presumed no guarantee.

 * In consequence of the policy of development and improvement of its products, the Multisint reserves the right to change notifying the customer variants of the products used.
